CH-LP5 Parallel beam sensor

Product features: CH-LP5 parallel beam weighing sensor is a single point bearing structure, the product structure is simple, easy to use.Suitable for weighing equipment or strength measuring equipment of platform scale, packing scale, counting scale.

OnlineTel
156-2185-0939

Product intro

Product

Product name：CH-LP5 Parallel beam sensor

Product features：CH-LP5 parallel beam weighing sensor is a single point bearing structure, the product structure is simple, easy to use.Suitable for weighing equipment or strength measuring equipment of platform scale, packing scale, counting scale.

Range：0.5 kN(50kg)、1kN(100kg)、2 kN(200kg)、2.5kN(250kg)、3kN(300kg)

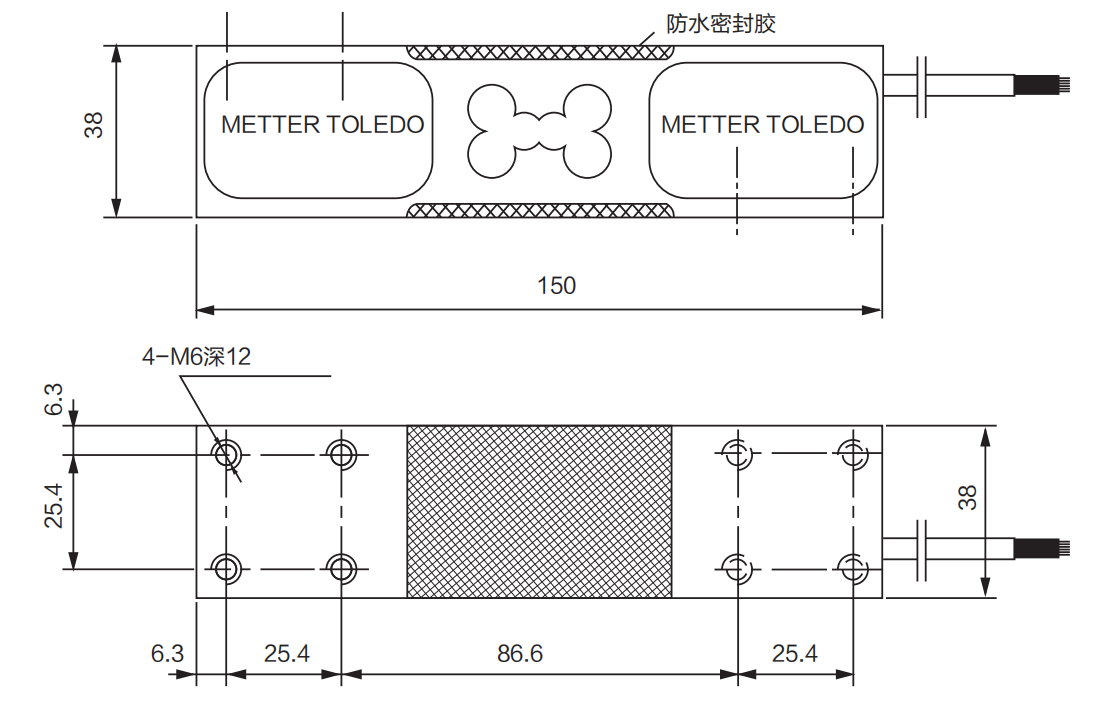

Dimensions：

Specification：

Specification
Rated Output	2.0mV/V±10%	Input impedance	410±15Ω
Non-linearity	±0.02%F.S	Output impedance	350±5Ω
Hysteresis	＜±0.02%F.S	Insulation resistance	≥5000MΩ
Repeatability	＜±0.02%F.S	Allow excitation voltage	5～15V/DC
Creep	＜±0.02%F.S/30min	Compensated temp. range	-10℃～+40℃
Temp. effect on zero	＜±0.02%/10℃	Operating temp. range	-30℃～+70℃
Temp. effect on span	＜±0.02%/10℃	Safe overload	150%F.S
Zero balance	＜±1%F.S	Ultimate overload	200%F.S
Connection	Excitation：+ Red - Black Shield： Thick Yellow Signal： + Green - White
