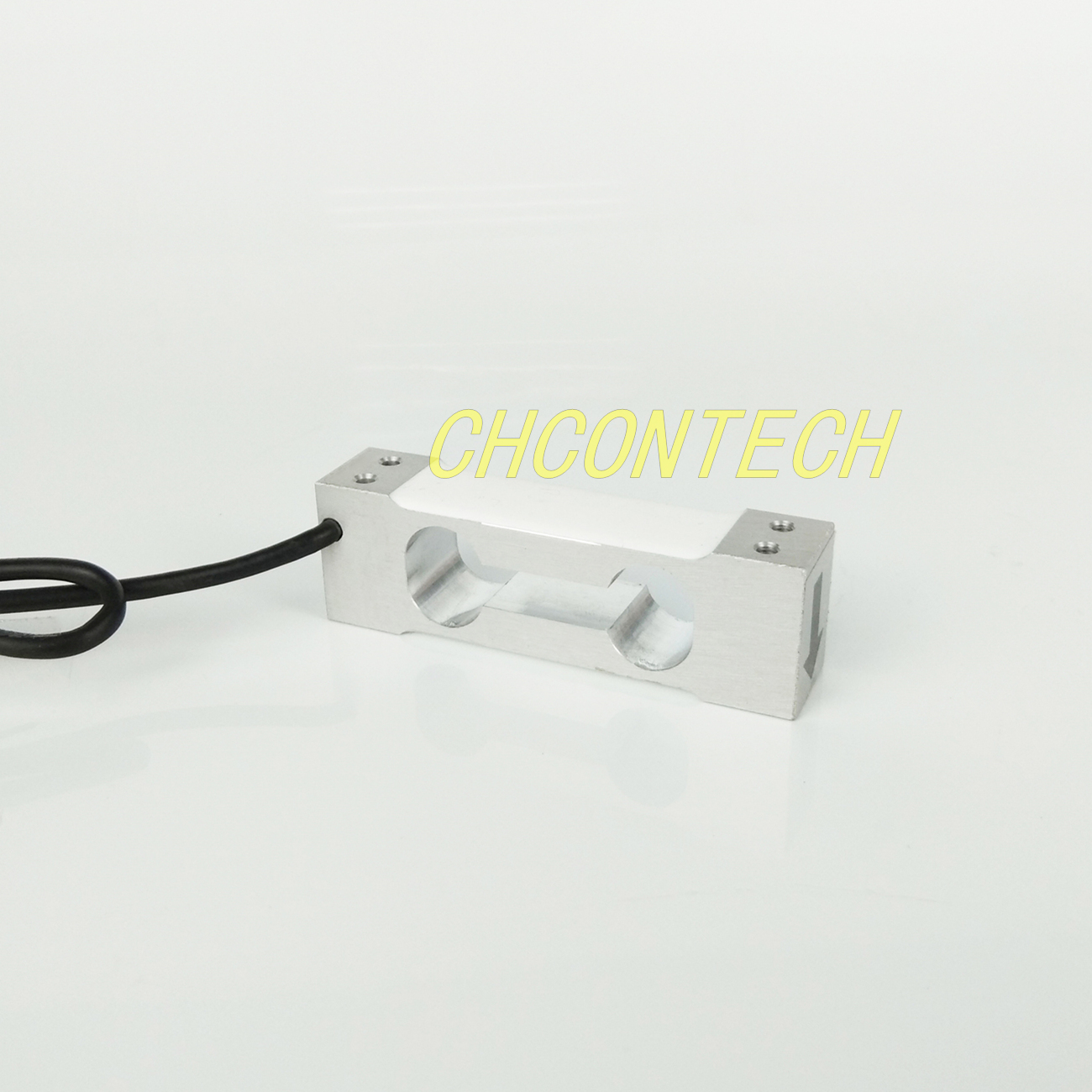

CH-P1A Parallel beam sensor

Product features: CH-P1A aluminum parallel beam weighing sensor product structure simple, easy to use.Suitable for valuation scale, counting scale, balance scale and so on.

OnlineTel
156-2185-0939

Product intro

Product

Product name：CH-P1A Parallel beam sensor

Product feature：CH-P1A aluminum parallel beam weighing sensor product structure simple, easy to use.Suitable for valuation scale, counting scale, balance scale and so on.

Range：3N(0.3kg)、5N(0.5kg)、10N(1kg)、20N(2kg)、30N(3kg)、50N(5kg)、100N(10kg)

Dimensions：

Specification：

Specification
Rated Output	1.0mV/V±10%; 2.0mV/V±10%	Input impedance	410±15Ω
Non-linearity	±0.02%F.S	Output impedance	350±5Ω
Hysteresis	＜±0.02%F.S	Insulation resistance	≥5000MΩ
Repeatability	＜±0.02%F.S	Allow excitation voltage	5～15V/DC
Creep	＜±0.02%F.S/30min	Compensated temp. range	-10℃～+40℃
Temp. effect on zero	＜±0.02%/10℃	Operating temp. range	-20℃～+60℃
Temp. effect on span	＜±0.03%/10℃	Safe overload	150%F.S
Zero balance	＜±1%F.S	Ultimate overload	200%F.S
Connection	Excitation：+ Red - Black Shield： Thick Yellow Signal： + Green - White
