CH-SD S sensor

Product Features: CH-SD adopts high quality alloy steel material, with high precision, high stability, low shape, easy installation, fast and so on.It is suitable for testing machine, batching scale, mixing station, belt scale and packing scale, etc. It can al...

OnlineTel
156-2185-0939

Product intro

Product

Product Name：CH-SD S sensor

Features：CH-SD adopts high quality alloy steel material, with high precision, high stability, low shape, easy installation, fast and so on.It is suitable for testing machine, batching scale, mixing station, belt scale and packing scale, etc. It can also be used for pulling force or pressing.

Range：50N（5kg）、100N（10kg）、100N（20kg）、300N（30kg）、500N（50kg）、1kN（100kg）、2kN(200kg)、3kN(300kg)、5kN(500kg)、10 kN(1t)、2 0kN(2t)、30 kN(3t)、50 kN(5t)

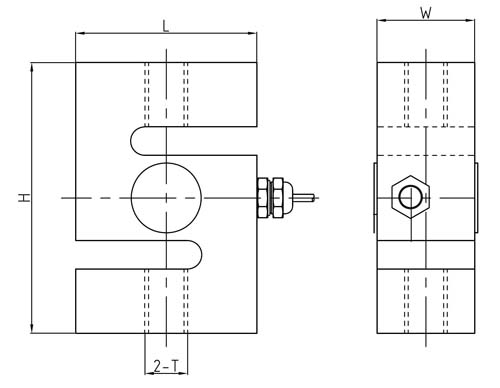

Dimensions：

Range（kN）	Range（kg）		L	H	W	T
0.05-0.5	5-50	mm	51	64	13	M8x1.25
1-5	100-500	mm	51	76	19.1	M12x1.75
10-20	1000-2000	mm	54	76	25.4	M12x1.75
25-50	2500-5000	mm	76	108	25.4	M18x1.5

Specifications：

Specifications
Rated Output	2.0mV/V±1%	Zero Balance	±1%F.S
Comprehensive Precision	0.03%F.S	Input Impedance	385±10Ω
Linearity/ Hysteresis	±0.03%F.S	Output Impedance	350±3Ω
Repeatability	±0.03%F.S	Insulation Impedance	≥5000MΩ
Creep	±0.03%F.S/30min	Recommended Excitation Voltage	5～15V/DC
Temp. Effect On Zero	±0.02%/10℃	Compensated temp. Range	-30℃～+70℃
Temp. Effect On Output	±0.02%/10℃	Safe Overload	150%F.S
Connection	Excitation：+ Red - Black Signal： + Green - White Shield： Thick Yellow
